Resting 12 Lead ECG

by Nissha Medical Technologies

ECG Electrodes

SilveRest™ - Resting 12 Lead ECG Tab Electrodes

Nissha Medical Technologies' SilveRest™ tab electrodes for resting EKG provide excellent adhesion and quality traces. Our silver/silver chloride coating and conductive adhesive gel provide an electrode that meets or exceeds the AAMI standard for disposable pre-gelled EKG electrodes

  • Conductive adhesive gel
  • Patented traction liner prevents tabs from sliding off liner saving time and money
  • Pliable substrate conforms to body
  • Ultra low impedance (<100 ohms) promotes rapid baseline stabilization
  • Adhesive solid gel requires minimal cleanup
  • Packaged in convenient, re-sealable pouches
  • Latex Free
  • Repositionable

Common Clinical Department Use

  • Cardiology
  • Diagnostic/Outpatient Testing Departments
  • Critical Care Unit/CCU
  • Emergency Department

Common Clinical Test Use

  • Echocardiogram
  • Resting 12 Lead
  • Emergency Diagnostic ECG
  • Outpatient Screening


A10009 - 1.375” / 34.925mm - ROUND VINYL TAPE ELECTRODE

Item # Description Gel Type Qty More Information Order
6500032V SILVEREST ELECTRODE A10009 1.375 Conductive Wet Gel 1200 Product Details
6500033V SILVEREST ELECTRODE A10009-100 1.375 Conductive Wet Gel 1000 Product Details


A10009-100F - 1.375” / 34.925mm - ROUND FOAM ELECTRODE

Item # Description Gel Type Qty More Information Order
6500509V SILVEREST ELECTRODE A10009-100F 1.375 Conductive Wet Gel 1000 Product Details

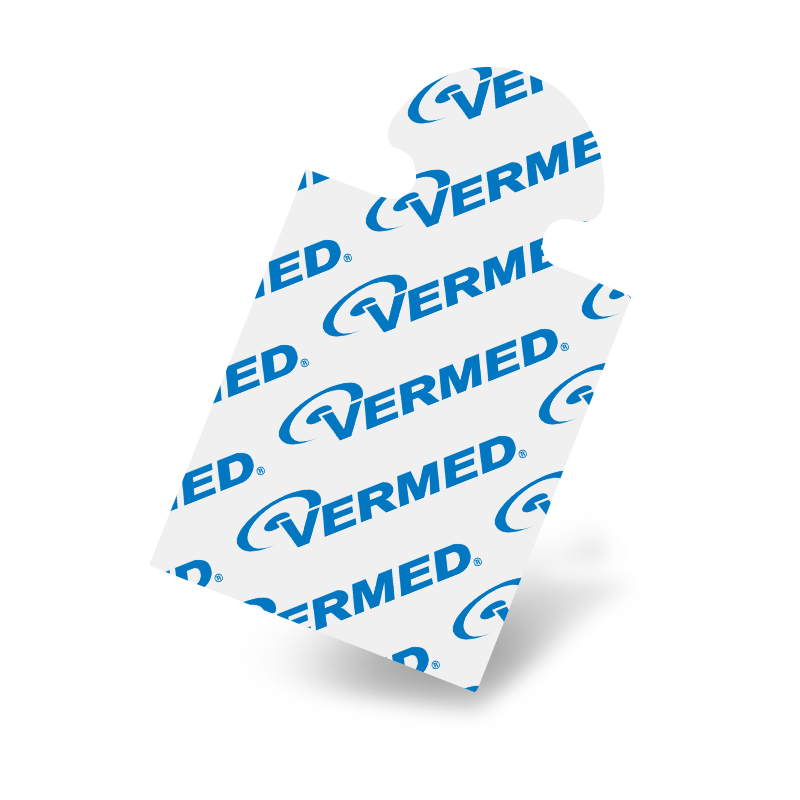

A10022 - .984” x .90” / 24.99mm x 22.86mm - Ag/AgCL

Item # Description Gel Type Qty More Information Order
6500043V Tab Electrode A10022 TAB BOX4000 0.98 x 0.90 Conductive Adhesive Hydrogel 4000 Product Details

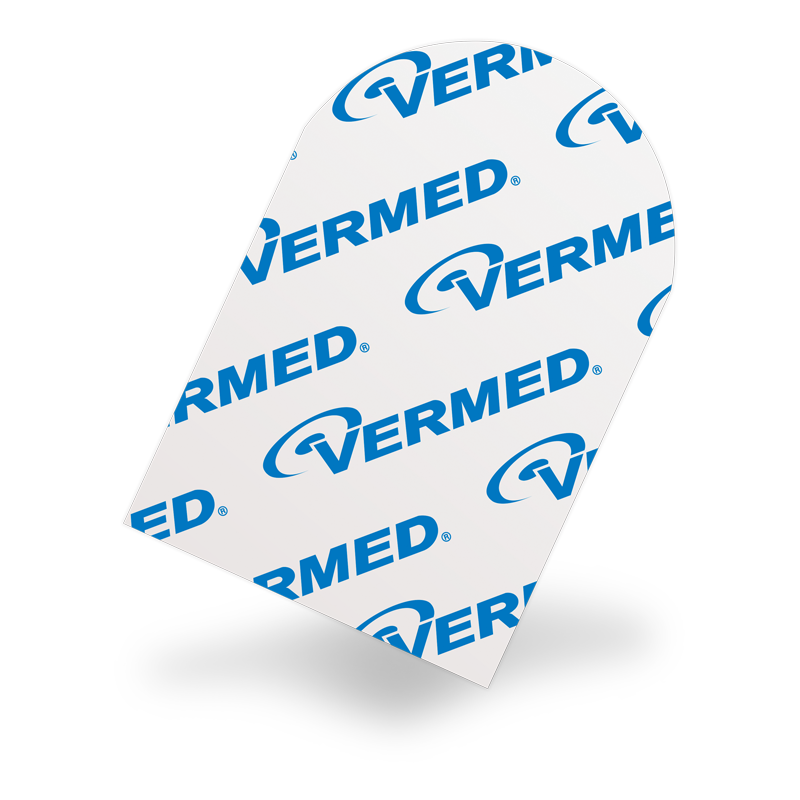

A10201 - 1.34” x .90” / 34.036mm x 22.86mm - C/AgCL

Item # Description Gel Type Qty More Information Order
6500082V Tab Electrode A10201 0.9 x 1.34 Conductive Adhesive Hydrogel 4000 Product Details
6500083V Tab Electrode A10201-500 0.9 x 1.34 Conductive Adhesive Hydrogel 3000 Product Details

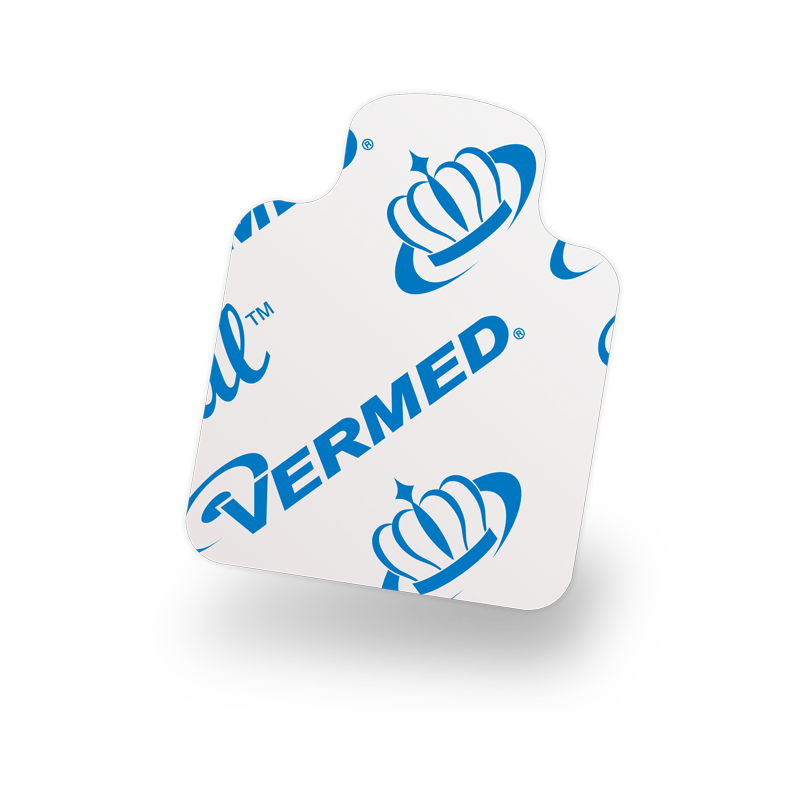

A10023 - 1.125” x 1.438” / 28.575mm x 36.525mm - Ag/AgCL

Item # Description Gel Type Qty More Information Order
6500044V TABS Electrode A10023 TAB 1.44 x 1.125 Conductive Adhesive Hydrogel 4000 Product Details
6502902V TABS Electrode A10023-1000BX 1.44 x 1.125 Conductive Adhesive Hydrogel 1000 Product Details
6502971V TABS Electrode A10023-10 1.44 x 1.125 Conductive Adhesive Hydrogel 4000 Product Details

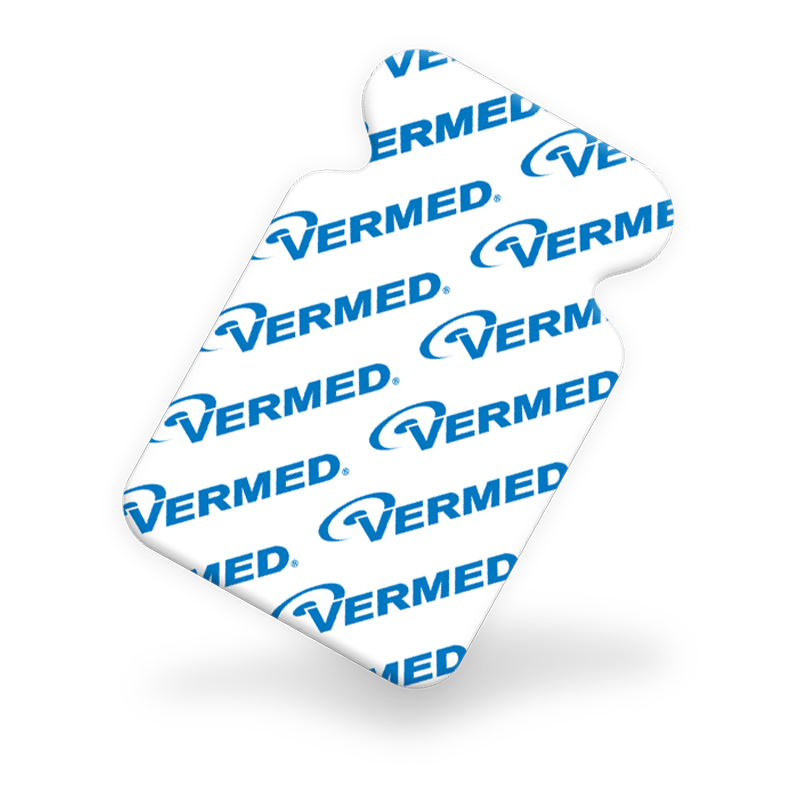

A10202-10 - 1.297” x .864” / 34mm x 23mm - C/AgCL

Item # Description Gel Type Qty More Information Order
6503179V Tab Electrode A10202-10 (Case of 4000 equals 400 packs) 1.33 * 0.96 Adhesive Hydrogel 400 Product Details


A10027 - 0.5” x 0.9 / 12.7mm x 22.86mm - AG/AGCL TinyTab

Item # Description Gel Type Qty More Information Order
6502930V Tab Electrode A10027 0.5 x .901 Conductive Adhesive Hydrogel 1000 Product Details

TinyTab electrodes are specially designed to fit on smaller pediatric patients
