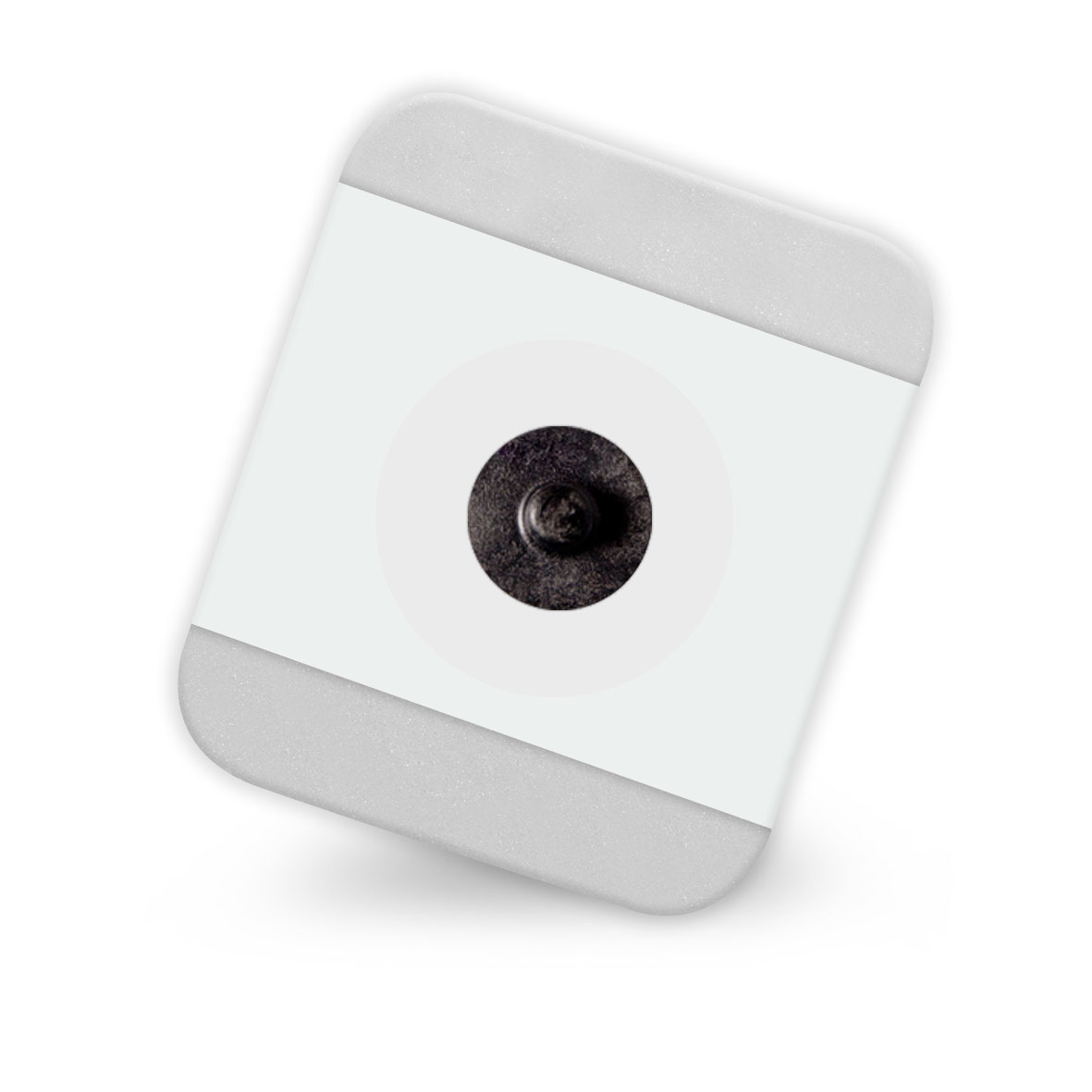

ZBrand Electrode Z35RT-3

+ View Larger

ZBrand Electrode Z35RT-3

6502724V - ZBrand Electrode Electrodes - 1 per Ea

Product Line
ZBrand™

Quantity Per
1 Per Pouch

Application
General Patient Monitoring

Size
1.5748 x 1.3779 in / 40 x 35 mm

Shape
Square

Substrate Material
Polyethylene Foam

Gel Type
Conductive Solid Gel

Download Spec Sheet

Duration Of Use
72 Hours

Adhesive Strength
Regular

MRI Conditional
Yes

Cross Reference:

22853

3700C-003

853

Z35RT-3

Load More +

| Hide All

Price:

In Stock

- Ships 11/25/2024
Qty On Hand: 28,800

Min Qty
1,200 Ea

Pkg. Multiple
1,200 Ea

UOM
Ea

# Per UOM
1

More Information

Graphic Controls Part Number:	6502724V
Product Type:	Medical
OEM Equipment:	ZBrand Electrode
Adaptor
Xray Translucent	Yes
Shelf Life Months	24
Repositionability	No
Sensor Diameter (in)	0.300
Sensor Diameter (mm)	7.62
Substrate Thickness (in)
Substrate Thickness (mm)
Total Surface Area (in²)	1.50
Total Surface Area (mm²)	967.74
Gel Area (in²)	0.44
Gel Area (mm²)	283.8704
Adhesive Area (in²)	1.94
Adhesive Area (mm²)	1251.61
Resealable Pouch	No
Lead Wire Length (in)	N/A
Lead Wire Color
Adhesive	Acrylic, Medical Grade
Release Liner	PET
Sensor Polymer	Ag/AgCl plated ABS
Lead Wire Jacketing	N/A
Lead Wire Cord	N/A
Packaging Material	PE, Foil, PE
Packaging Size LxW (in)	14.76 x 10.63 x 7.09
Packaging Size LxW (cm)	37.5 x 27 x 18
Carton Size / Qty (in)	N/A
Carton Size / Qty (cm)	N/A
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible
Any Halogenated Hydrocarbon Content	N/A
Any Pthalate Derivative Content	None
RoHS Compliance	No
REACH	No
Regulatory Status	N/A
ACZ Impedance (Ohm)
DC Voltage Offset (mV)
SDR Slope (mV/s)
ACZ Impedance Repeat (Ohm)
COIIN (uV)
Bias Current Tolerance (mV)
Pediatric	No
Foam Sponge Material	Polyester based PU foam
Size Length Width (cm)	13.97 x 8.255
Size Length Width (in)	5.5 x 3.25
Integrated Abrader	No
Quantity Per	1
