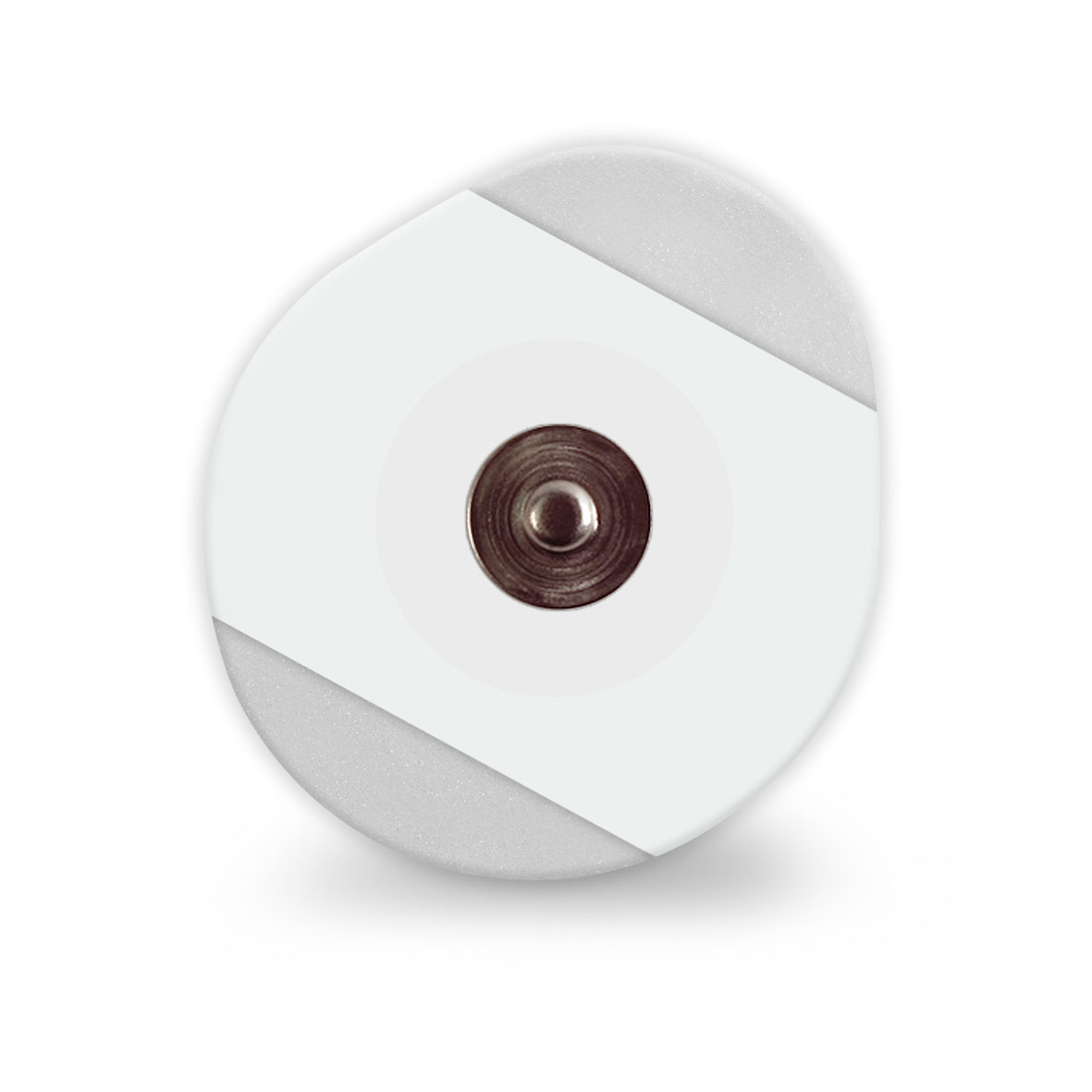

ZBrand Electrode Z05-50

+ View Larger

ZBrand Electrode Z05-50

6502682V - ZBrand Electrode Electrodes - 1 per Ea

Product Line
ZBrand™

Quantity Per
1 Per Pouch

Application
General Patient Monitoring

Size
1.5748 x 1.4173 in / 40 x 36 mm

Shape
Teardrop

Substrate Material
Polyethylene Foam

Gel Type
Conductive Wet Gel

Download Spec Sheet

Duration Of Use
72 Hours

Adhesive Strength
Regular

MRI Conditional
No

Cross Reference:

1510-030

Load More +

| Hide All

Price:

In Stock

- Ships 11/25/2024
Qty On Hand: 101,000

Min Qty
1,000 Ea

Pkg. Multiple
1,000 Ea

UOM
Ea

# Per UOM
1

More Information

Graphic Controls Part Number:	6502682V
Product Type:	Medical
OEM Equipment:	ZBrand Electrode
Adaptor
Xray Translucent	No
Shelf Life Months	24
Repositionability	No
Sensor Diameter (in)	0.300
Sensor Diameter (mm)	7.62
Substrate Thickness (in)
Substrate Thickness (mm)
Total Surface Area (in²)	1.33
Total Surface Area (mm²)	858.0628
Gel Area (in²)	0.31
Gel Area (mm²)	199.9996
Adhesive Area (in²)	1.64
Adhesive Area (mm²)	1058.062
Resealable Pouch	No
Lead Wire Length (in)	N/A
Lead Wire Color
Adhesive	Acrylic, Medical Grade
Release Liner	PET
Sensor Polymer	Ag/AgCl plated ABS
Lead Wire Jacketing	N/A
Lead Wire Cord	N/A
Packaging Material	PE, Foil, PE
Packaging Size LxW (in)	14.76 x 10.63 x 7.09
Packaging Size LxW (cm)	37.5 x 27 x 18
Carton Size / Qty (in)	N/A
Carton Size / Qty (cm)	N/A
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible
Any Halogenated Hydrocarbon Content	N/A
Any Pthalate Derivative Content	None
RoHS Compliance	No
REACH	No
Regulatory Status	N/A
ACZ Impedance (Ohm)
DC Voltage Offset (mV)
SDR Slope (mV/s)
ACZ Impedance Repeat (Ohm)
COIIN (uV)
Bias Current Tolerance (mV)
Pediatric	No
Foam Sponge Material	Polyester based PU foam
Size Length Width (cm)	17 x 26
Size Length Width (in)	6.69 x 10.23
Integrated Abrader	No
Quantity Per	1
