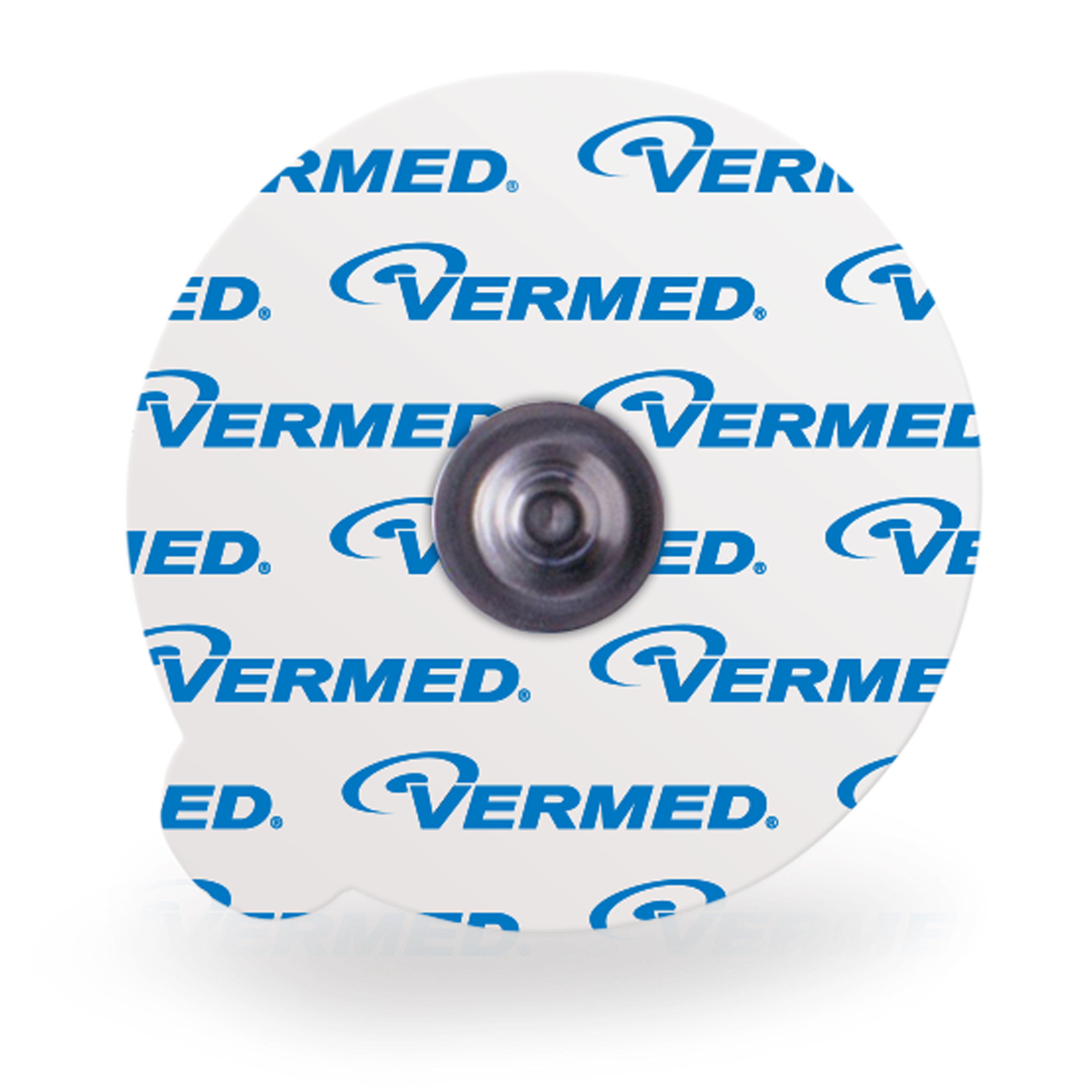

SILVEREST ELECTRODE A10009

+ View Larger

6500032V - SILVEREST ELECTRODE Electrodes - 1 per Ea

Product Line
SilveRest™

Quantity Per
1 Per Pouch

Application
Resting ECG

Size
1.375 in / 34.925 mm

Shape
Circular

Substrate Material
Vinyl Tape

Gel Type
Conductive Wet Gel

Reference Number
A10009

Duration Of Use
24 Hours

Adhesive Strength
Regular

MRI Conditional
No

Cross Reference:

A10009

Load More +

| Hide All

Price:

Min Qty
1,200 Ea

Pkg. Multiple
1,200 Ea

UOM
Ea

# Per UOM
1

More Information

Graphic Controls Part Number:	6500032V
Product Type:	Medical
OEM Equipment:	SILVEREST ELECTRODE
Adaptor	Stainless Steel
Xray Translucent	No
Shelf Life Months	18
Repositionability	No
Sensor Diameter (in)	0.42
Sensor Diameter (mm)	10.592
Substrate Thickness (in)	0.006
Substrate Thickness (mm)	0.152
Total Surface Area (in²)	1.4828
Total Surface Area (mm²)	37.6632
Gel Area (in²)	0.3068
Gel Area (mm²)	7.7927
Adhesive Area (in²)	1.176
Adhesive Area (mm²)	29.8705
Resealable Pouch	Yes
Lead Wire Length (in)	N/A
Lead Wire Color
Adhesive	Acrylic, Medical Grade
Release Liner	PS
Sensor Polymer	Ag/AgCl plated ABS
Lead Wire Jacketing	N/A
Lead Wire Cord	N/A
Packaging Material	Paper/PE/Foil/PE
Packaging Size LxW (in)	10 x 15.75 x 10.75
Packaging Size LxW (cm)	25.4 x 40.005 x 27.305
Carton Size / Qty (in)	9.25 x 5 x 5
Carton Size / Qty (cm)	23.495 x 12.7 x 12.7
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible
Any Halogenated Hydrocarbon Content	None
Any Pthalate Derivative Content	None
RoHS Compliance	Yes
REACH	Yes
Regulatory Status	CE Mark according to MDD 93/42/EEC CE marked
ACZ Impedance (Ohm)	26
DC Voltage Offset (mV)	0.39
SDR Slope (mV/s)	0.06
ACZ Impedance Repeat (Ohm)	21
COIIN (uV)	6
Bias Current Tolerance (mV)	6
Pediatric	No
Foam Sponge Material	Polyurethane Reticulated Foam
Size Length Width (cm)	22.86 x 12.065
Size Length Width (in)	9 x 4.75
Integrated Abrader	No
Quantity Per	1
