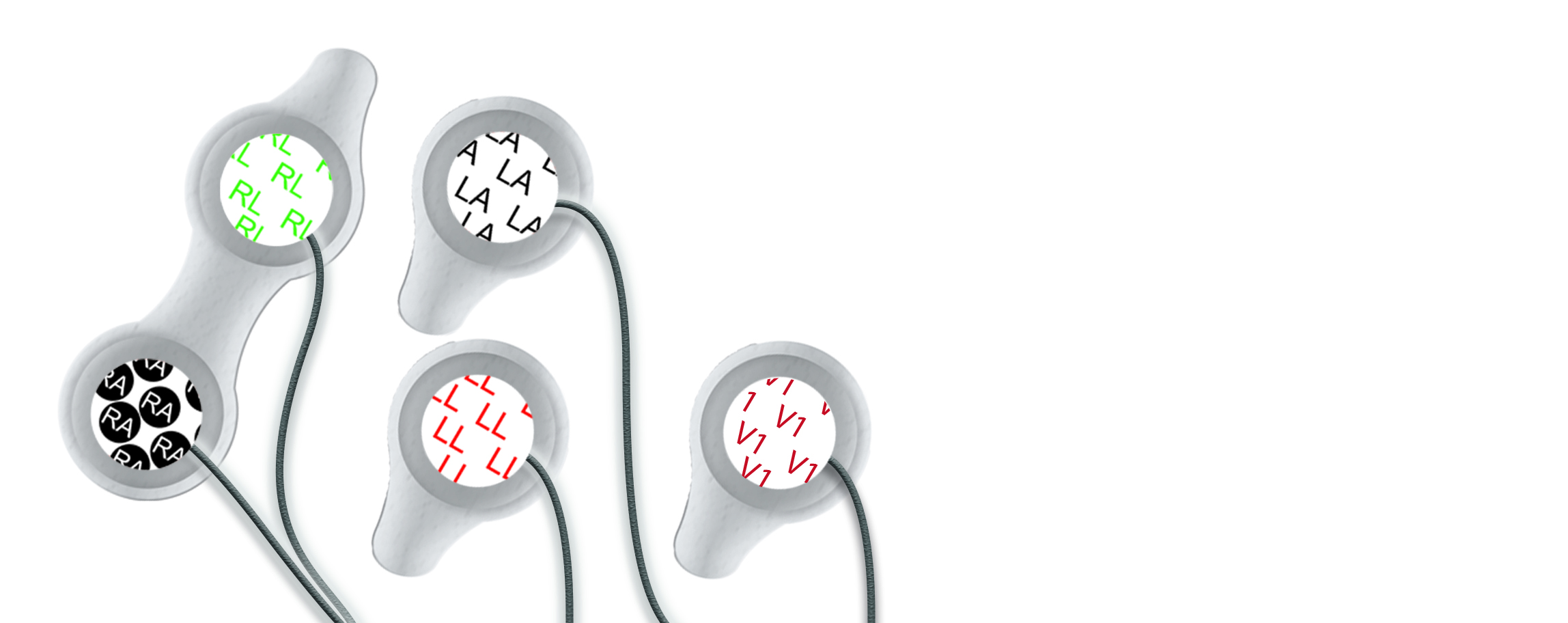

Claravue ADULT PATIENT KIT- 5 ELECTRODES

+ View Larger

32028778 - Claravue Electrodes - 5 per PH

Product Line
Claravue

Application
Adult ECG monitoring

Shape
Round

Substrate Material
Tape

Gel Type
Conductive Solid Gel

Reference Number
50601-US

Duration Of Use
120 Hours

MRI Conditional
No

Load More +

| Hide All

Cross Reference:

IP-SET M5 RT ADULT-US

50601-US

Min Qty
30 PH

Pkg. Multiple
30 PH

UOM
PH

# Per UOM
5

Restricted Countries

This item is not registered to be sold in: United States of America . Please contact us for more information.

More Information

Graphic Controls Part Number:	32028778
Product Type:	Medical
OEM Equipment:	Claravue
Xray Translucent	Yes
Shelf Life Months	24
Repositionability	Yes
Leadwire Length (in)	69.89
Leadwire Length (mm)	1750
Sensor Diameter (in)	0.42
Sensor Diameter (mm)	10.592
Substrate Thickness (in)	1.5
Substrate Thickness (mm)	0.0381
Weight (g)	26
Total Surface Area (in²)	1.96
Total Surface Area (mm²)	1264.5
Gel Area (in²)	1.5
Gel Area (mm²)	967.74
Adhesive Area (in²)	N/A
Adhesive Area (mm²)	N/A
Lead Wire Color	Carbon
Adhesive	NA
Release Liner	Silicon Coated Polyester
Sensor Polymer	Ag/AgCl
Adaptor	Carbon
Packaging Material	Triplex
Resealable Pouch	No
Packaging Size LxW (in)	5.52x6.30
Packaging Size LxW (cm)	11.5x16
Carton Size (in)	12.20 x 23.81 x 15.74
Carton Size (cm)	31 x 60.5 x 40
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible	Compatible
Any Halogenated Hydrocarbon Content	None
Any Pthalate Derivative Content	None
RoHS Compliance	Yes
REACH	Yes
Regulatory Status	CE Mark according to MDD 93/42/EEC CE marked
Electrodes Per Pouch	5
Electrodes Per Case	1800
