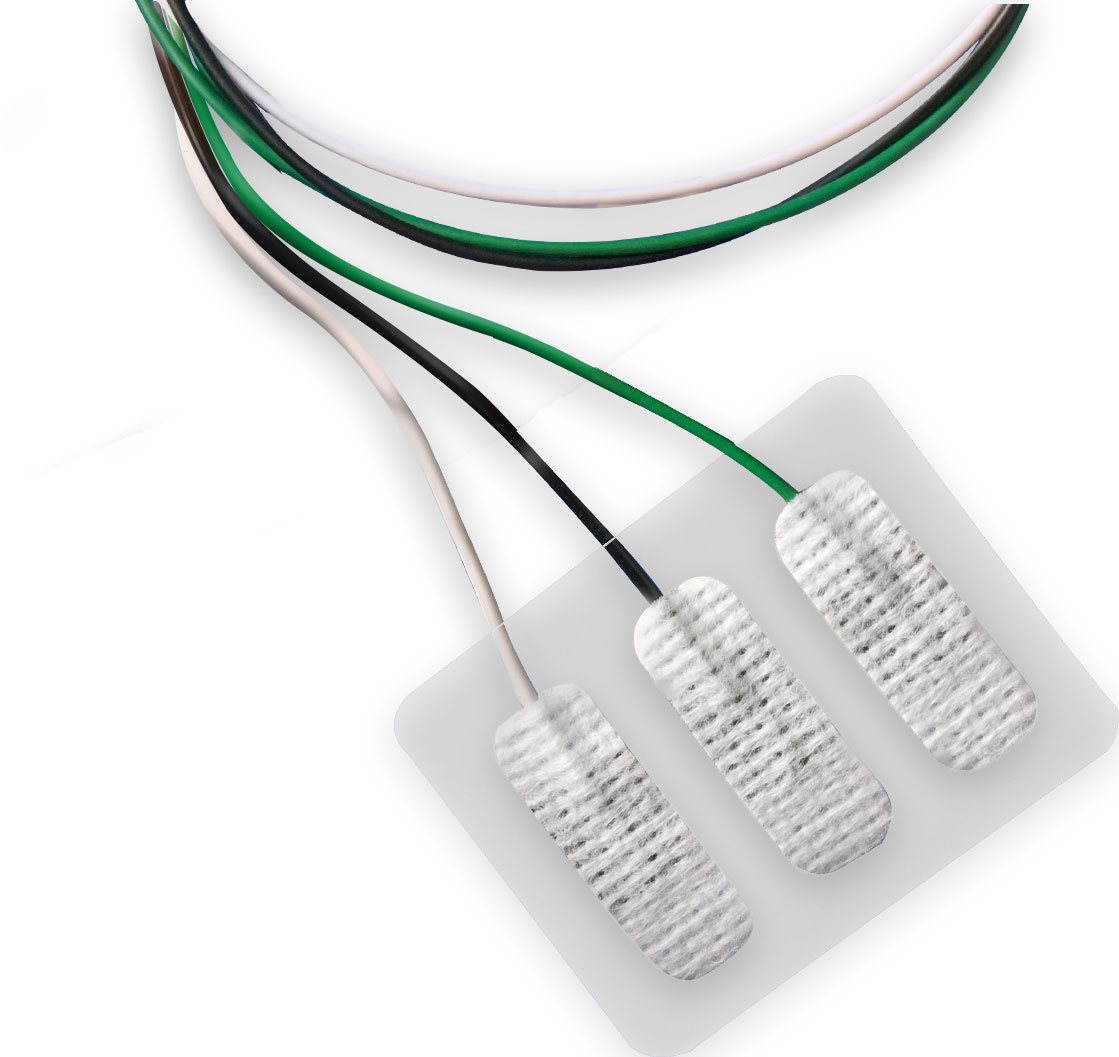

TenderTrode Plus A10058-SRT

+ View Larger

6502876V - TenderTrode Plus Electrodes - 3 per Ea

Product Line
TenderTrode Plus™

Quantity Per
1 Per Pouch

Application
Infant Monitoring Prewired electrodes

Size
1 x 0.375 in / 25.4 x 9.525 mm

Shape
Rounded Rectangle

Substrate Material
Spunlace Non-Woven Fabric

Gel Type
Hydrocolloid

Reference Number
A10058-SRT

Duration Of Use
120 Hours

Adhesive Strength
Regular

MRI Conditional
No

Cross Reference:

10058SRT

6502876V

A10058-SRT

Load More +

| Hide All

Price:

In Stock

- Ships 12/27/2024
Qty On Hand: 13,184

Min Qty
20 Ea

Pkg. Multiple
20 Ea

UOM
Ea

# Per UOM
3

More Information

Graphic Controls Part Number:	6502876V
Product Type:	Medical
OEM Equipment:	TenderTrode Plus
Adaptor
Xray Translucent	Yes
Shelf Life Months	24
Repositionability	No
Sensor Diameter (in)	N/A
Sensor Diameter (mm)	N/A
Substrate Thickness (in)
Substrate Thickness (mm)
Total Surface Area (in²)	0.375
Total Surface Area (mm²)	241.935
Gel Area (in²)	0.188
Gel Area (mm²)	121.29
Adhesive Area (in²)	0.188
Adhesive Area (mm²)	121.29
Resealable Pouch	No
Lead Wire Length (in)	24
Lead Wire Color	Black White Green
Adhesive	Acrylic, Medical Grade
Release Liner	PS
Sensor Polymer	RT
Lead Wire Jacketing	Phthalate Free PVC
Lead Wire Cord	26 AWG (14/37)
Packaging Material	Paper/PE/Foil/PE
Packaging Size LxW (in)	8.1875 x 3.125 x 3.1875
Packaging Size LxW (cm)	20.796 x 7.9375 x 8.096
Carton Size / Qty (in)	N/A
Carton Size / Qty (cm)	N/A
Passed ISO 10993	Passed
Latex Free	Yes
Sensitive Skin Compatible
Any Halogenated Hydrocarbon Content	N/A
Any Pthalate Derivative Content	None
RoHS Compliance	Yes
REACH	Yes
Regulatory Status	US Class II
ACZ Impedance (Ohm)	240
DC Voltage Offset (mV)	0.0
SDR Slope (mV/s)
ACZ Impedance Repeat (Ohm)	222
COIIN (uV)	0
Bias Current Tolerance (mV)	5.6
Pediatric	Yes
Foam Sponge Material	N/A
Size Length Width (cm)	10.16 x 10.16
Size Length Width (in)	4 x 4
Integrated Abrader	No
Quantity Per	1
